Carbide Strips

Carbide Strips
Carbide Strips
Carbide Strips

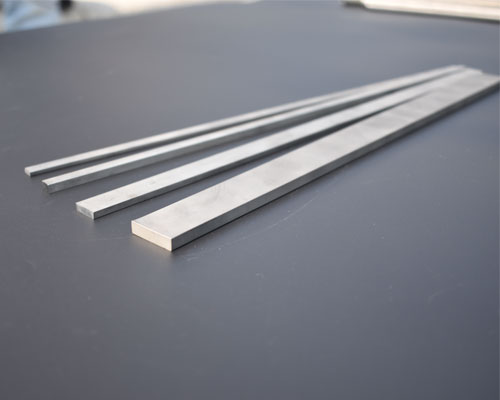

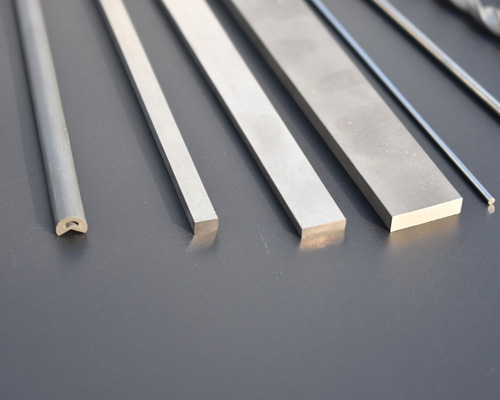

Carbide strips are referring the rectangular tungsten carbide rod, also known as tungsten carbide flats.It is produced by the same way as carbide rod, through powder(Mainly WC and Co powder as per formula) mixture, ball milling, spray tower drying, extruding, drying, sintering, (and cutting or grinding if necessary) final inspection, packing, then delivery, middle inspection is done after each process to make sure only the qualified products can be moved to next production process.



The carbon sulfur analyzer, HRA tester, TRS tester, Metallographic microscope(Check microstructure), coercive force tester, cobalt magnetic tester are used to inspect and make sure the material of carbide strip is good qualified, besides, drop test is added specially to the carbide strip inspection to make sure there is no material flaw in the whole long strip. And the size inspection as per order.



Application of carbide strip:

  1. Woodworking blades.

  2. Cut to small pieces to be welded as cutter blades.

  3. Grinding support plate in grinding machines.

  4. Other applications.



1. Cuboid carbide strip, strip without chamfer.


SizeThickness (mm)ThicknessTol. (mm)Width (mm)Width Tol. (mm)Length (+1/+5mm)
2x42+0.1/+0.34+0.2/+0.4310
2x62+0.1/+0.36+0.2/+0.4310
2x82+0.1/+0.38+0.2/+0.4310
2x102+0.1/+0.310+0.2/+0.4310
2x122+0.1/+0.312+0.2/+0.4310
2x142+0.1/+0.314+0.2/+0.4310
2x162+0.1/+0.316+0.2/+0.4310
2x182+0.1/+0.318+0.2/+0.4310
3x33+0.1/+0.33+0.2/+0.4310
3x43+0.1/+0.34+0.2/+0.4310
3x63+0.1/+0.36+0.2/+0.4310
3x83+0.1/+0.38+0.2/+0.4310
3x103+0.1/+0.310+0.2/+0.4310
3x123+0.1/+0.312+0.2/+0.4310
3x153+0.1/+0.315+0.2/+0.6310
3x203+0.1/+0.320+0.2/+0.6310
3x253+0.1/+0.325+0.2/+0.6310
4x54+0.1/+0.35+0.2/+0.4310
4x64+0.1/+0.36+0.2/+0.4310
4x84+0.1/+0.38+0.2/+0.4310
4x104+0.1/+0.310+0.2/+0.4310
4x124+0.1/+0.312+0.2/+0.4310
4x134+0.1/+0.313+0.2/+0.4310
4x154+0.1/+0.315+0.2/+0.6310
4x164+0.1/+0.316+0.2/+0.6310
4x184+0.1/+0.318+0.2/+0.6310
4x204+0.1/+0.320+0.2/+0.6310
4x254+0.1/+0.325+0.2/+0.6310

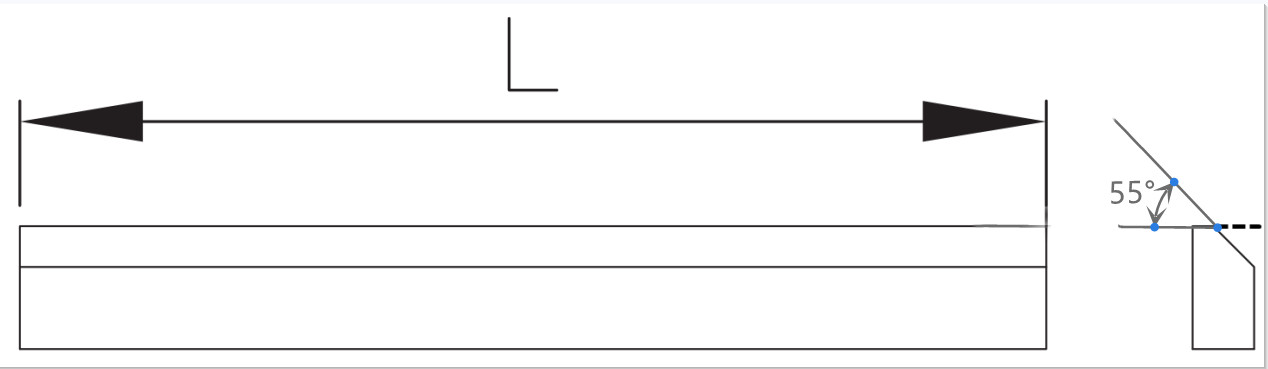

2. Carbide strip with chamfer


Carbide Strips


SizeThickness (mm)Thickness Tol. (mm)Width W (mm)Width Tol. (mm)Length (+1/+5mm)
3x6-55°3+0.1/+0.36+0.2/+0.4310
3x8-55°3+0.1/+0.38+0.2/+0.4310
3x9-55°3+0.1/+0.39+0.2/+0.4310
3x10-55°3+0.1/+0.310+0.2/+0.4310
3x12-55°3+0.1/+0.312+0.2/+0.4310
3x30-55°3+0.1/+0.330+0.2/+0.4310
4x10-55°4+0.1/+0.310+0.2/+0.4310
