Wire Drawing Die Blank

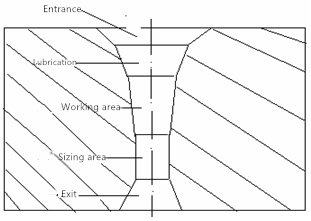

According to the working properties, the structure of drawing die core can be divided into five sections: "entrance area, lubrication area, working area, sizing area and exit area"（See figure 1）. The inner diameter profile of the drawing die is very important. It determines the tension required to compress the wire rod and affects the residual stress in the wire after drawing. The functions of each area of the die core are as follows: the entrance area is convenient for material threading and preventing the steel wire from scratching the drawing die from the entrance direction; the lubrication area is convenient for the steel wire to be brought into the lubricant; the working area is the main part of the die hole, and the deformation process of the steel wire is carried out here, that is, the original section is reduced to the required section size. When drawing metal with conical surface, the space occupied by the volume of metal in the working area is a circular table, which is called deformation area. The cone half angle α (also known as die half angle) in the working area is mainly used to determine the drawing force; the sizing area is used to obtain the exact size of the drawn steel wire; the outlet area is used to prevent the steel wire from surface scratching due to the instability of the steel wire exit.

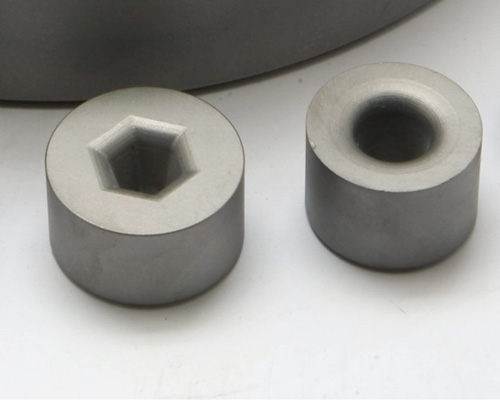

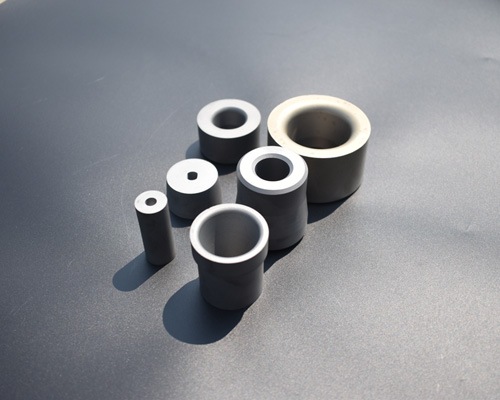

Betalent carbide manufactures carbide wire drawing die core blank as per drawing, tolerance of diameter and hole can be controlled to be very small, hole tolerance can be controlled to be +/-o.1mm, adding a polishing machining process you can get final ready grinding hole no need wire cutting or other allowance removing machining process, which can save lots of labor and machining cost. Betalent has moulds for some size of wire drawing blank, more and more size molds are in making, please contact sales person for the ready moulds list if you want to check to see if the wire drawing die size you need can be available from ready moulds or not.

According to the working properties, the structure of drawing die core can be divided into five sections: "entrance area, lubrication area, working area, sizing area and exit area"（See figure 1）. The inner diameter profile of the drawing die is very important. It determines the tension required to compress the wire rod and affects the residual stress in the wire after drawing. The functions of each area of the die core are as follows: the entrance area is convenient for material threading and preventing the steel wire from scratching the drawing die from the entrance direction; the lubrication area is convenient for the steel wire to be brought into the lubricant; the working area is the main part of the die hole, and the deformation process of the steel wire is carried out here, that is, the original section is reduced to the required section size. When drawing metal with conical surface, the space occupied by the volume of metal in the working area is a circular table, which is called deformation area. The cone half angle α (also known as die half angle) in the working area is mainly used to determine the drawing force; the sizing area is used to obtain the exact size of the drawn steel wire; the outlet area is used to prevent the steel wire from surface scratching due to the instability of the steel wire exit.

Betalent carbide manufactures carbide wire drawing die core blank as per drawing, tolerance of diameter and hole can be controlled to be very small, hole tolerance can be controlled to be +/-o.1mm, adding a polishing machining process you can get final ready grinding hole no need wire cutting or other allowance removing machining process, which can save lots of labor and machining cost. Betalent has moulds for some size of wire drawing blank, more and more size molds are in making, please contact sales person for the ready moulds list if you want to check to see if the wire drawing die size you need can be available from ready moulds or not.
