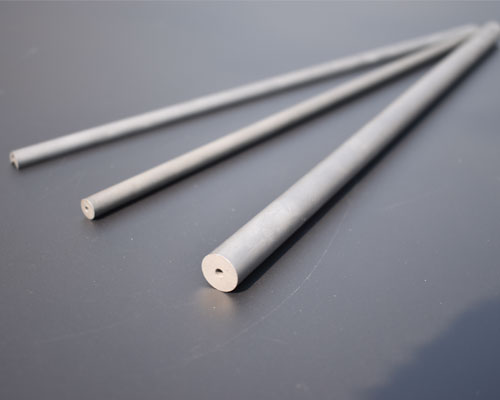

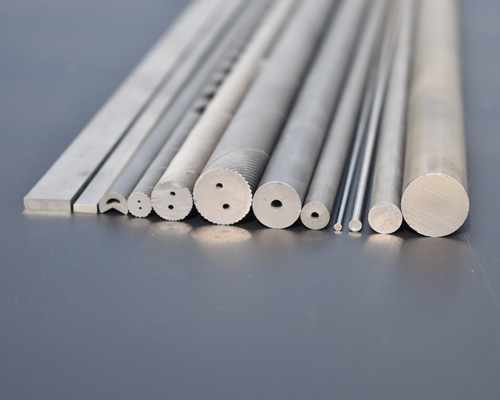

Carbide rod with parallel holes (standard TK)

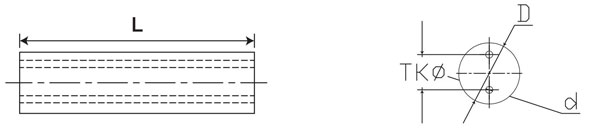

| D (mm) | Tolerance (mm) | d (mm) | Tol. (mm) | TK holes spacing (mm) | Tol.(mm) | Length (mm) Tol:+1/+4mm |
| 4.0 | +0.2/+0.5 | 0.8 | ±0.10 | 1.72 | ±0.08 | 310 / 330/340 |
| 5.0 | +0.2/+0.5 | 0.8 | ±0.10 | 1.92 | ±0.08 | 310 / 330/340 |
| 6.0 | +0.3/+0.6 | 1.0 | ±0.10 | 2.90 | ±0.1 | 310/330/340 |
| 7.0 | +0.3/+0.6 | 1.0 | ±0.15 | 3.40 | ±0.1 | 310/330/340 |
| 8.0 | +0.3/+0.6 | 1.0 | ±0.15 | 3.85 | ±0.15 | 310/330/340 |
| 9.0 | +0.3/+0.6 | 1.4 | ±0.15 | 3.85 | ±0.15 | 310/330/340 |
| 10.0 | +0.3/+0.6 | 1.4 | ±0.15 | 4.85 | ±0.15 | 310/330/340 |
| 11.0 | +0.3/+0.7 | 1.4 | ±0.15 | 4.85 | ±0.15 | 310/330/340 |
| 12.0 | +0.3/+0.7 | 1.75 | ±0.15 | 5.85 | ±0.15 | 310/330/340 |
| 13.0 | +0.3/+0.7 | 1.75 | ±0.15 | 5.85 | ±0.15 | 310/330/340 |
| 14.0 | +0.3/+0.7 | 1.75 | ±0.15 | 6.85 | ±0.15 | 310/330/340 |
| 15.0 | +0.3/+0.7 | 2.0 | ±0.20 | 6.85 | ±0.15 | 310/330/340 |
| 16.0 | +0.3/+0.7 | 2.0 | ±0.20 | 7.85 | ±0.15 | 310/330/340 |
| 17.0 | +0.3/+0.8 | 2.0 | ±0.20 | 7.85 | ±0.15 | 310/330/340 |
| 18.0 | +0.3/+0.8 | 2.0 | ±0.20 | 8.85 | ±0.15 | 310/330/340 |
| 19.0 | +0.3/+0.8 | 2.0 | ±0.20 | 8.85 | ±0.15 | 310/330/340 |
| 20.0 | +0.4/+0.9 | 2.5 | ±0.25 | 9.80 | ±0.2 | 310/330/340 |
| 21.0 | +0.4/+0.9 | 2.5 | ±0.25 | 9.80 | ±0.2 | 310/330/340 |
| 22.0 | +0.4/+0.9 | 2.5 | ±0.25 | 10.80 | ±0.2 | 310/330/340 |
| 23.0 | +0.4/+0.9 | 2.5 | ±0.25 | 10.80 | ±0.2 | 310/330/340 |
| 24.0 | +0.4/+0.9 | 3.0 | ±0.25 | 11.75 | ±0.25 | 310/330/340 |
| 25.0 | +0.4/+0.9 | 3.0 | ±0.25 | 11.75 | ±0.25 | 310 / 330/340 |
| 26.0 | +0.4/+0.9 | 3.0 | ±0.25 | 12.75 | ±0.25 | 310 / 330/340 |
| 28.0 | +0.4/+0.9 | 3.0 | ±0.25 | 13.75 | ±0.25 | 310 / 330/340 |
| 30.0 | +0.4/+0.9 | 3.0 | ±0.25 | 13.75 | ±0.25 | 310 / 330/340 |
| 32.0 | +0.4/+0.9 | 3.0 | ±0.25 | 13.75 | ±0.25 | 310 / 330/340 |
| 34.0 | +0.4/+0.9 | 3.0 | ±0.25 | 13.75 | ±0.25 | 310 / 330/340 |
Remark:
1, Dia. smaller than 4mm and larger than 34mm can be customised.
2, Hole and TK size can be customized
3, MOQ 100pcs per size for customized items.
Carbide rod with parallel holes (Narrow TK)
| D (mm) | Tolerance (mm) | d (mm) | Tol. (mm) | TK holes spacing (mm) | Tol. (mm) | Length (mm Tol:+1/+4mm |
| 6.0 | +0.3/+0.6 | 0.8 | ±0.10 | 1.40 | ±0.1 | 310/330/340 |
| 7.0 | +0.3/+0.6 | 0.8 | ±0.10 | 1.40 | ±0.1 | 310/330/340 |
| 8.0 | +0.3/+0.6 | 0.8 | ±0.10 | 1.40 | ±0.1 | 310/330/340 |
| 8.0 | +0.3/+0.6 | 0.8 | ±0.10 | 1.85 | ±0.15 | 310/330/340 |
| 8.0 | +0.3/+0.6 | 1.0 | ±0.10 | 2.45 | ±0.15 | 310/330/340 |
| 9.0 | +0.3/+0.6 | 1.0 | ±0.10 | 2.45 | ±0.15 | 310/330/340 |
| 10.0 | +0.3/+0.6 | 1.0 | ±0.10 | 2.45 | ±0.15 | 310/330/340 |
| 11.0 | +0.3/+0.7 | 1.20 | ±0.15 | 3.35 | ±0.15 | 310/330/340 |
| 12.0 | +0.3/+0.7 | 1.20 | ±0.15 | 3.35 | ±0.15 | 310/330/340 |
| 13.0 | +0.3/+0.7 | 1.20 | ±0.15 | 3.35 | ±0.15 | 310/330/340 |
| 14.0 | +0.3/+0.7 | 1.5 | ±0.15 | 4.85 | ±0.15 | 310/330/340 |
| 15.0 | +0.3/+0.7 | 1.5 | ±0.15 | 4.85 | ±0.15 | 310/330/340 |
| 16.0 | +0.3/+0.7 | 1.5 | ±0.15 | 4.85 | ±0.15 | 310/330/340 |
| 17.0 | +0.3/+0.8 | 2.0 | ±0.20 | 6.00 | ±0.15 | 310/330/340 |
| 18.0 | +0.3/+0.8 | 2.0 | ±0.20 | 6.00 | ±0.2 | 310/330/340 |
| 19.0 | +0.3/+0.8 | 2.0 | ±0.20 | 6.00 | ±0.2 | 310/330/340 |
| 20.0 | +0.4/+0.9 | 2.0 | ±0.20 | 6.00 | ±0.2 | 310/330/340 |
| 21.0 | +0.4/+0.9 | 2.0 | ±0.20 | 6.00 | ±0.2 | 310/330/340 |
| 22.0 | +0.4/+0.9 | 2.0 | ±0.20 | 6.00 | ±0.2 | 310/330/340 |
| 23.0 | +0.4/+0.9 | 2.0 | ±0.20 | 7.30 | ±0.2 | 310 / 330/340 |
| 24.0 | +0.4/+0.9 | 2.0 | ±0.20 | 7.30 | ±0.2 | 310 / 330/340 |
| 25.0 | +0.4/+0.9 | 2.0 | ±0.20 | 7.30 | ±0.2 | 310 / 330/340 |
Remark:
1, Dia. smaller than 6mm and larger than 25mm can be customised.
2, Hole and TK size can be customized
3, MOQ 100pcs per size for customized items.
