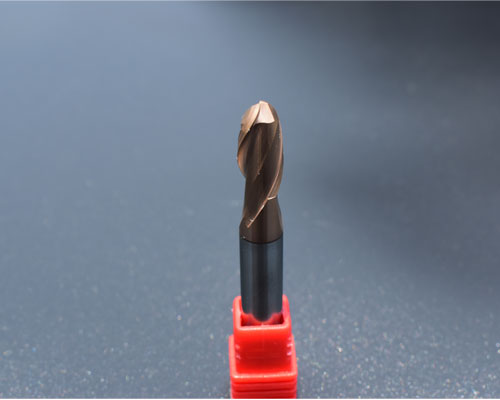

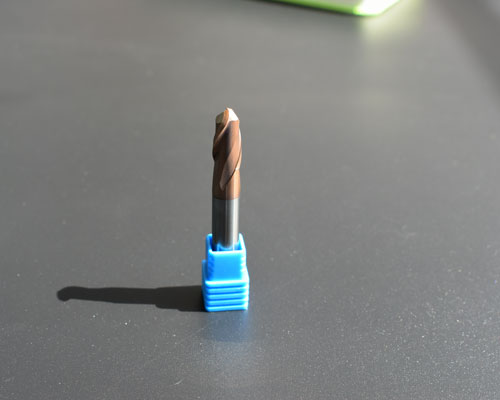

Ball Nose End Mill

Advantages of ball nose end mill:

1. Carbide ball nose end mill can mill tooling steel, carbon steel, alloy steel, tool steel, cast iron, and general iron in high working temperature situation.

2. It reduces the actual cutting radius, the cutting power, and the cutting torque, which is more conducive to the spindle motor working in a better state.

3. A more stable milling state and a higher surface finish can be obtained.

4. It is an ideal end mill for semi-finishing and finishing milling of the curved surface

Ball Nose End Mill List

	D Cutting Dia.(mm)	D Shank Dia.(mm)	Lc Cutting length(mm)	L Overall length(mm)
4 Flute, 20mm Ball Nose End Mill, Small Diameter Mill Cutter	20mm	20mm	40mm	100mm
2 Flute, 0.2 Mm Ball Nose End Mill, Small Diameter Mill Cutter	0.2mm	4mm	0.16mm	50mm
2 Flute, 0.4 Mm Ball Nose End Mill, small Diameter Mill Cutter	0.4mm	4mm	0.32mm	50mm
2 Flute, 0.5 Mm Ball Nose End Mill, small Diameter Mill Cutter	0.5mm	4mm	0.4mm	50mm
2 Flute, 0.6 Mm Ball Nose End Mill, small Diameter Mill Cutter	0.6mm	4mm	0.48mm	50mm
2 Flute, 0.8 Mm Ball Nose End Mill, small Diameter Mill Cutter	0.8mm	4mm	0.64mm	50mm
2 Flute, 1 Mm Ball Nose End Mill, mill Cutter	1mm	4mm	4mm	50mm
2 Flute, 1.5 Mm Ball Nose End Mill, small Diameter Mill Cutter	1.5mm	4mm	6mm	50mm
2 Flute, 2mm Ball Nose End Mill, small Diameter Mill Cutter	2mm	4mm	8mm	50mm
2 Flute, 3 Mm Ball Nose End Mill, small Diameter Mill Cutter	3mm	4mm	10mm	50mm
2 Flute, 4mm Ball Nose End Mill, small Diameter Mill Cutter	4mm	4mm	12mm	50mm
2 Flute, 5mm Ball Nose End Mill, small Diameter Mill Cutter	5mm	6mm	16mm	50mm
2 Flute, 6mm Ball Nose End Mill, small Diameter Mill Cutter	6mm	6mm	20mm	50mm
2 Flute, 8mm Ball Nose End Mill, small Diameter Mill Cutter	8mm	8mm	24mm	60mm
2 Flute, 10mm Ball Nose End Mill, small Diameter Mill Cutter	10mm	10mm	28mm	75mm
2 Flute, 12mm Ball Nose End Mill, small Diameter Mill Cutter	12mm	12mm	32mm	75mm
2 Flute, 14mm Ball Nose End Mill, small Diameter Mill Cutter	14mm	16mm	40mm	90mm
2 Flute, 16mm Ball Nose End Mill, small Diameter Mill Cutter	16mm	16mm	30mm	100mm
2 Flute, 20mm Ball Nose End Mill, small Diameter Mill Cutter	20mm	20mm	38mm	100mm
4 Flute, 2mm Ball Nose End Mill, small Diameter Mill Cutter	2mm	4mm	4mm	50mm
4 Flute, 3 Mm Ball Nose End Mill, small Diameter Mill Cutter	3mm	4mm	6mm	50mm
4 Flute, 4mm Ball Nose End Mill, small Diameter Mill Cutter	4mm	4mm	8mm	50mm
4 Flute, 5mm Ball Nose End Mill, small Diameter Mill Cutter	5mm	6mm	10mm	50mm
4 Flute, 6mm Ball Nose End Mill, Small Diameter Mill Cutter	6mm	6mm	12mm	50mm
4 Flute, 8mm Ball Nose End Mill, Small Diameter Mill Cutter	8mm	8mm	16mm	60mm
4 Flute, 10mm Ball Nose End Mill, Small Diameter Mill Cutter	10mm	10mm	20mm	75mm
4 Flute, 12mm Ball Nose End Mill, Small Diameter Mill Cutter	12mm	12mm	24mm	75mm
4 Flute, 14mm Ball Nose End Mill, Small Diameter Mill Cutter	14mm	16mm	28mm	90mm
4 Flute, 16mm Ball Nose End Mil,l Small Diameter Mill Cutter	16mm	16mm	32mm	100mm
