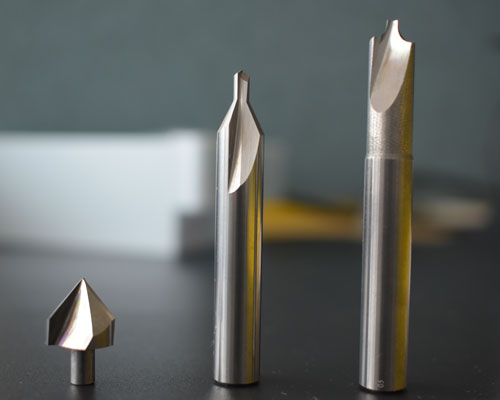

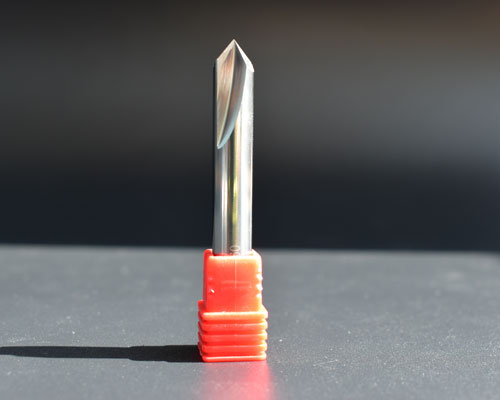

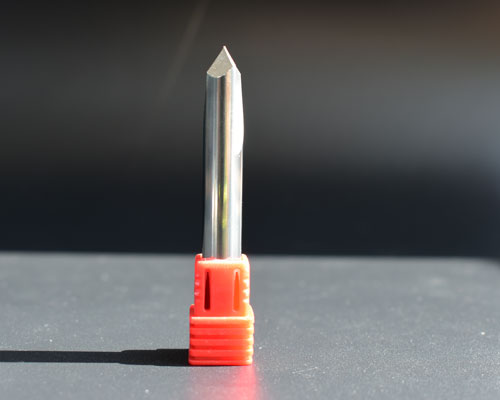

Chamfering End Mill

Chamfering End Mill
Chamfering End Mill
Chamfering End Mill

The advantages of Betalent carbide chamfer end mill:

  1. A suitable negative front angle design is adopted, which takes into account the edge strength and sharpness.

  2. The large core diameter is adopted to enhance the rigidity of the end mill and make the cutting and chip removal more stable.

  3. The full cutting edge anti-vibration design makes the milling cutter wear-resistant, the cutting edge is durable and sharp, the chip removal is smooth, and the machining surface quality is improved.


There are four carbide grades applied to general flat end mills:

  1. BT45, for milling materials of which hardness range from HRC45degree to HRC48degree, workpiece categories P, K, and softer stainless steel under M group in ISO classification.

  2. BT50, for HRC50 to HRC53degree, mainly for M, N, and K group workpiece.

  3. BT55, for HRC55 to HRC58degree, for S, M, and K workpiece.

  4. BT60, for HRC 60 to 65degree, for milling quenched materials (HRC65 about), hardwood, and finish milling of SUS 316L stainless steel, most workpiece under ISO category H.




Chamfering End Mill List
D Cutting Dia.(mm) D Shank Dia.(mm) Lc Cutting length(mm) L Overall length(mm)
12mm Chamfer End Mill, 60°included Angle, Mill Cutter 12mm 4mm 36mm 75mm
12mm Chamfer End Mill, 120°included Angle, Mill Cutter 12mm 4mm 36mm 75mm
1 Mm Chamfer End Mill, 90°included Angle, Mill Cutter 1mm 4mm 3mm 50mm
1.5 Mm Chamfer End Mill, 90°included Angle, Mill Cutter 1.5mm 4mm 4.5mm 50mm
2mm Chamfer End Mill, 90°included Angle, Mill Cutter 2mm 4mm 6mm 50mm
3mm Chamfer End Mill, 90°included Angle, Mill Cutter 3mm 4mm 9mm 50mm
4mm Chamfer End Mill, 90°included Angle, Mill Cutter 3mm 4mm 12mm 50mm
5mm Chamfer End Mill, 90°included Angle, Mill Cutter 5mm 4mm 15mm 50mm
6mm Chamfer End Mill, 90°included Angle, Mill Cutter 6mm 4mm 18mm 50mm
8mm Chamfer End Mill, 90°included Angle, Mill Cutter 8mm 4mm 24mm 50mm
10mm Chamfer End Mill, 90°included Angle, Mill Cutter 10mm 4mm 30mm 75mm
12mm Chamfer End Mill, 90°included Angle, Mill Cutter 12mm 4mm 36mm 75mm
4mm Chamfer End Mill, 60°included Angle, Mill Cutter 3mm 4mm 12mm 50mm
6mm Chamfer End Mill, 60°included Angle, Mill Cutter 6mm 4mm 18mm 50mm
8mm Chamfer End Mill, 60°included Angle, Mill Cutter 8mm 4mm 24mm 50mm
10mm Chamfer End Mill, 60°included Angle, Mill Cutter 10mm 4mm 30mm 75mm
4mm Chamfer End Mill, 120°included Angle, Mill Cutter 3mm 4mm 12mm 50mm
6mm Chamfer End Mill,120°included Angle, Mill Cutter 6mm 4mm 18mm 50mm
8mm Chamfer End Mill, 120°included Angle, Mill Cutter 8mm 4mm 24mm 50mm
10mm Chamfer End Mill, 120°included Angle, Mill Cutter 10mm 4mm 30mm 75mm
