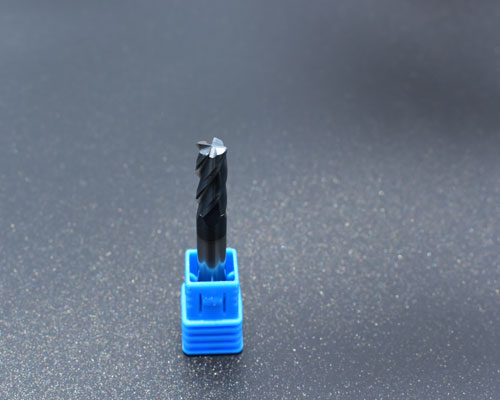

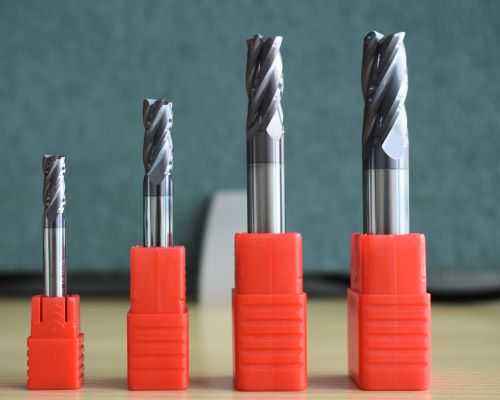

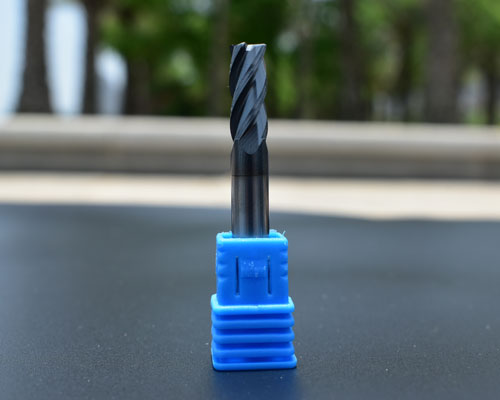

Corner Radius End Mill

Corner Radius End Mill
Corner Radius End Mill
Corner Radius End Mill

Betalent carbide corner radius end mills are made of high-quality carbide rods and designed by professional end mill designers with reasonable blade angle, blade shape, number of flutes, and chip groove. And all these type end mills are ground by imported Walter 5 axils grinding machine in order to get high enough precision level. Then a special passivating treatment and proper coating are done to the finished end mills to make the end mill tougher and longer lifetime.

There are four carbide grades applied to general flat end mills:

BT45, for milling materials of which hardness range from HRC45degree to HRC48degree, workpiece categories P, K, and softer stainless steel under M group in ISO classification.

BT50, for HRC50 to HRC53degree, mainly for M, N, and K group workpiece.

BT55, for HRC55 to HRC58degree, for S, M, and K workpiece.

BT60, for HRC 60 to 65degree, for milling quenched materials (HRC65 about), hardwood, and finish milling of SUS 316L stainless steel, most workpiece under ISO category H.


Corner Radius End Mill List
D Cutting Dia.(mm) D Shank Dia.(mm) Lc Cutting length(mm) L Overall length(mm)
2 Flute, 1 Mm Corner Radius End Mil,l Mill Cutter 1mm 4mm 3mm 50mm
2 Flute, 2 Mm Corner Radius End Mill, Mill Cutter 2mm 4mm 6mm 50mm
2 Flute, 3Mm Corner Radius End Mill, Mill Cutter 3mm 4mm 9mm 50mm
2 Flute, 4Mm Corner Radius End Mill, Mill Cutter 4mm 4mm 11mm 50mm
2 Flute, 5mm Corner Radius End Mill, Mill Cutter 5mm 6mm 13mm 50mm
2 Flute, 6mm Corner Radius End Mill, Mill Cutter 6mm 6mm 16mm 50mm
2 Flute, 8mm Corner Radius End Mill, Mill Cutter 8mm 8mm 20mm 60mm
2 Flute, 10mm Corner Radius End Mill, Mill Cutter 10mm 10mm 25mm 75mm
2 Flute, 12mm Corner Radius End Mill, Mill Cutter 12mm 12mm 30mm 75mm
2 Flute, 16mm Corner Radius End Mill, Mill Cutter 16mm 16mm 36mm 100mm
3 Flute, 1 Mm Corner Radius End Mill, Mill Cutter 1mm 4mm 3mm 50mm
3 Flute, 2 Mm Corner Radius End Mill, Mill Cutter 2mm 4mm 6mm 50mm
3 Flute, 3mm Corner Radius End Mill, Mill Cutter 3mm 4mm 9mm 50mm
3 Flute, 4mm Corner Radius End Mill, Mill Cutter 4mm 4mm 11mm 50mm
3 Flute, 5mm Corner Radius End Mill, Mill Cutter 5mm 6mm 13mm 50mm
3 Flute, 6mm Corner Radius End Mill, Mill Cutter 6mm 6mm 16mm 50mm
3 Flute, 8mm Corner Radius End Mill, Mill Cutter 8mm 8mm 20mm 60mm
3 Flute, 10mm Corner Radius End Mill, Mill Cutter 10mm 10mm 25mm 75mm
3 Flute, 12mm Corner Radius End Mill, Mill Cutter 12mm 12mm 30mm 75mm
3 Flute, 14mm Corner Radius End Mill, Mill Cutter 14mm 14mm 36mm 100mm
3 Flute, 16mm Corner Radius End Mill, Mill Cutter 16mm 16mm 36mm 100mm
3 Flute, 18mm Corner Radius End Mill, Mill Cutter 18mm 18mm 45mm 100mm
3 Flute, 20mm Corner Radius End Mill, Mill Cutter 18mm 18mm 45mm 100mm
4 Flute, 2 Mm Corner Radius End Mill, Mill Cutter 2mm 4mm 6mm 50mm
4 Flute, 3mm Corner Radius End Mill, Mill Cutter 3mm 4mm 9mm 50mm
4 Flute, 4mm Corner Radius End Mill, Mill Cutter 4mm 4mm 11mm 50mm
4 Flute, 5mm Corner Radius End Mill, Mill Cutter 5mm 6mm 13mm 50mm
4 Flute, 6mm Corner Radius End Mill, Mill Cutter 6mm 6mm 16mm 50mm
4 Flute, 8mm Corner Radius End Mill, Mill Cutter 8mm 8mm 20mm 60mm
4 Flute, 10mm Corner Radius End Mill, Mill Cutter 10mm 10mm 25mm 75mm
4 Flute, 12mm Corner Radius End Mill, Mill Cutter 12mm 12mm 30mm 75mm
4 Flute, 16mm Corner Radius End Mill, Mill Cutter 16mm 16mm 36mm 100mm
6 Flute, 6mm Corner Radius End Mill, Mill Cutter 6mm 6mm 16mm 50mm
6 Flute, 8mm Corner Radius End Mill, Mill Cutter 8mm 8mm 20mm 60mm
6 Flute, 10mm Corner Radius End Mill, Mill Cutter 10mm 10mm 25mm 75mm
6 Flute, 12mm Corner Radius End Mill, mill Cutter 12mm 12mm 30mm 75mm
6 Flute, 16mm Corner Radius End Mill, Mill Cutter 16mm 16mm 36mm 100mm
